Iron Baltic Skid plate full set aluminium/plastic ZFORCE 1000 Sport ZFORCE 950 Sport

Brand:
IB

Make:
CFMOTO

Model:
ZFORCE 1000 Sport
ZFORCE 950 Sport

Material:
Aluminium / Plastic

Thickness:
4 mm / 10 mm

Weight:
39.5 kg

Product dimensions:
2740 x 1500 x 305 mm

Packed dimensions:
1350 x 710 x 340 mm

This product version is compatible with the vehicles with factory fitted sway bar / stabilizer bar.

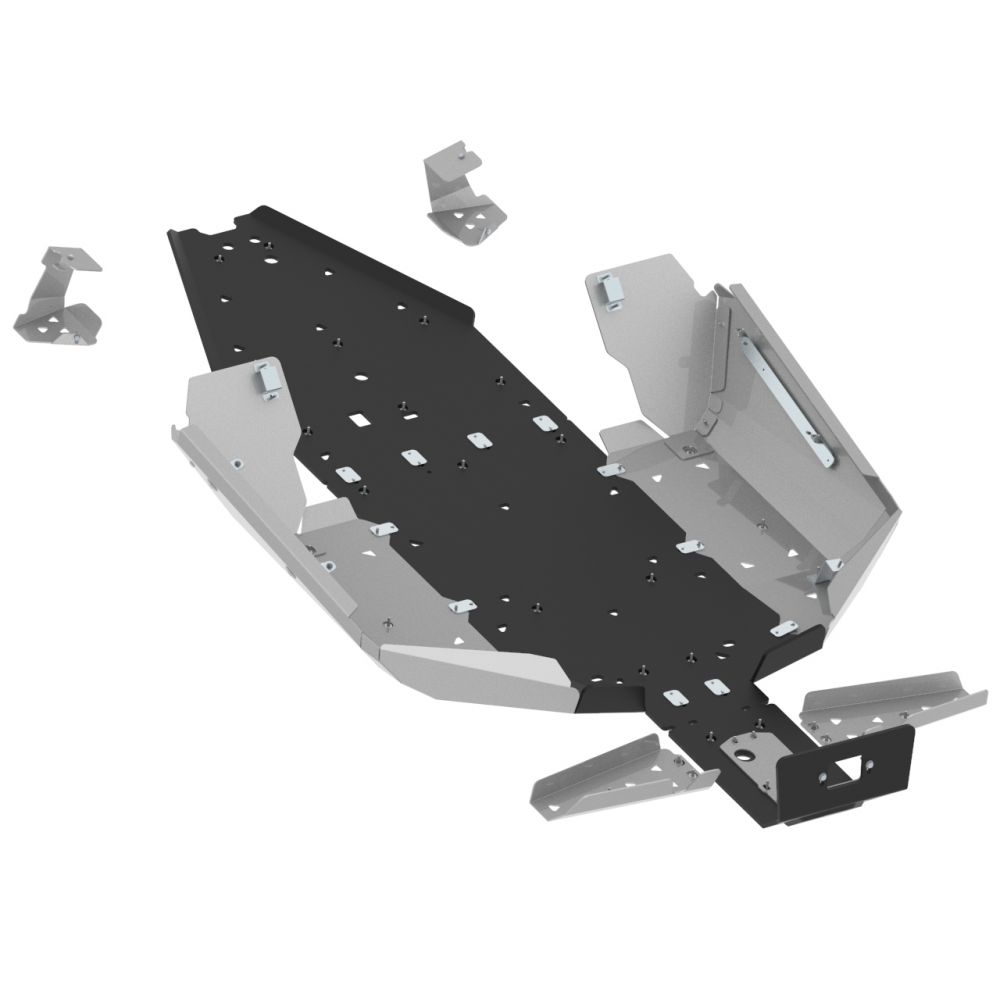

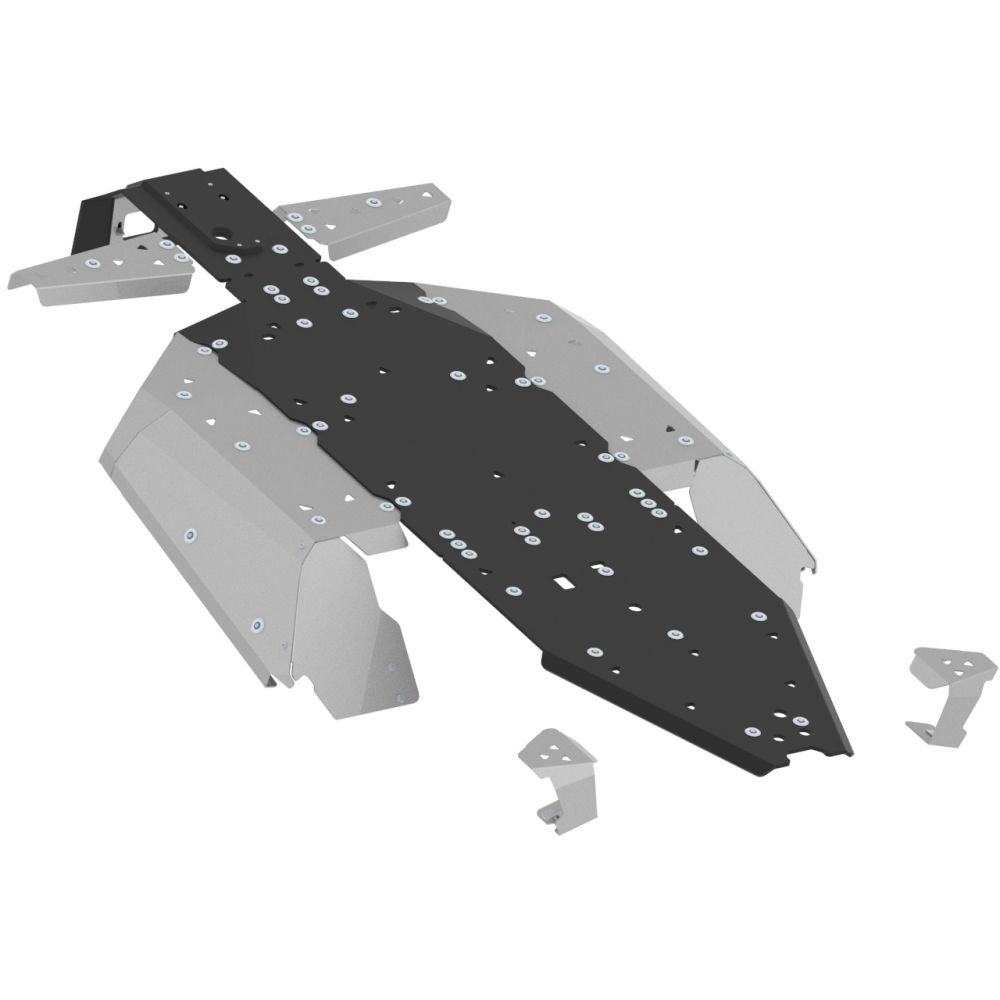

Iron Baltic skid plate full kit for CFMOTO ZFORCE 1000 SPORT / ZFORCE 950 SPORT with extra heavy duty 3 layer (aluminium + plastic + plastic) front impact nose piece.

Factory fitted lower side plastics are replaced with heavy duty 4mm aluminium covers effectively protecting the wheel wells, lowers sides and the fuel tank.

Center section of the skid plate is made out of slippery and strong 10mm thick HDPE plastic material, arms protections and side protections are made of heavy duty aluminium material.

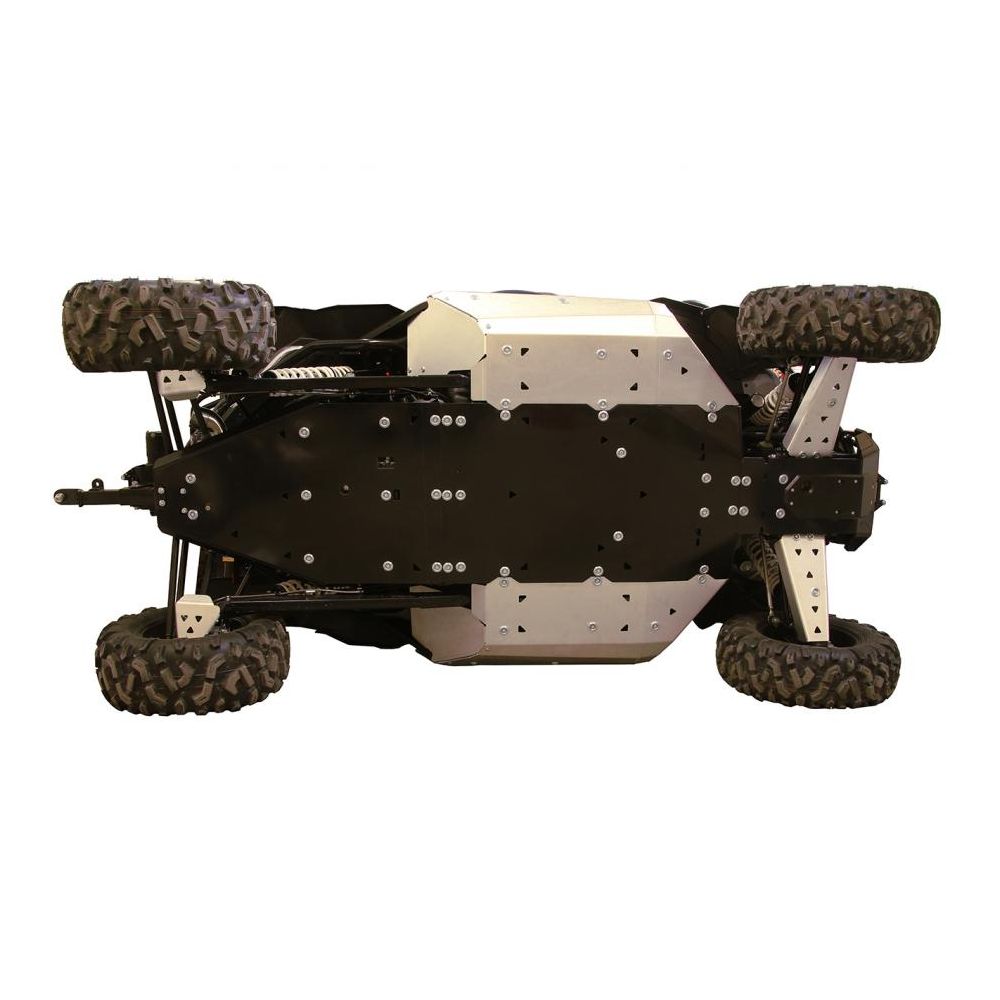

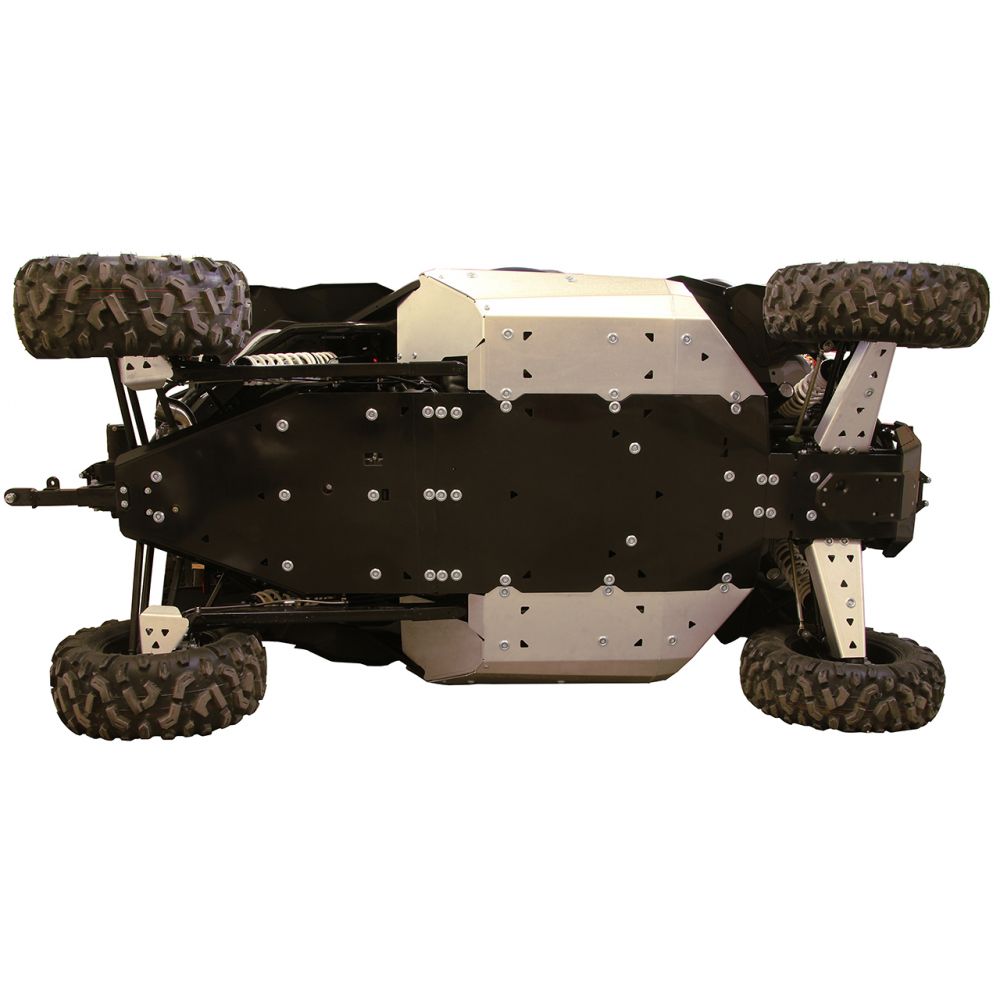

Full protection of bottom and front part of the ATV.
Heavy duty lower front part with 3 layers of material in impact area (total 24mm thickness).
Extra protective heavy duty lower side parts of the skid plate kit.
Small openings for mud draining & easier washing.
Holes for oil changing.
Holes for IB Mid-mount adapter, compatible with IB Front-mount adapter.
Detailed installation instruction and full mounting hardware included.
This product version is compatible with the vehicles with factory fitted sway bar / stabilizer bar.
